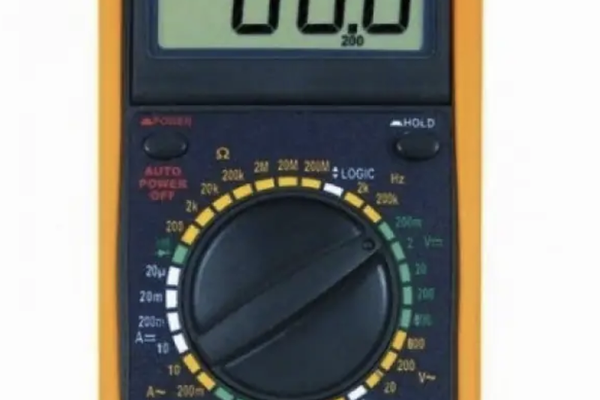

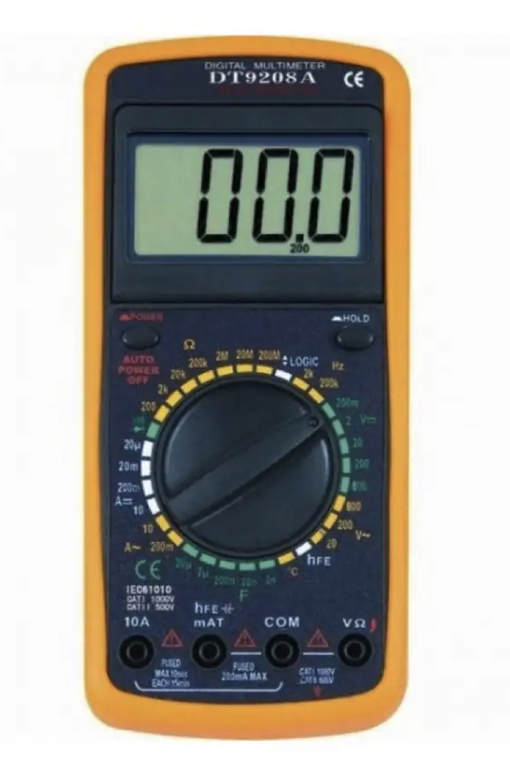

Multimetru Digital Cu Display 9208
Multimetrul masoara: - Curent continuu (voltajul si amperajul), - Curent alternativ (voltajul si amperajul), - Rezistenta, - Masurare condensatori, - Masurare dioda, - Tranzistori. Voltaj curent continuu: - Trepte - 200mV, 2V, 20V, 200V, 1000 V, - Rezolutie - 0.1 mV, 1 mV, 10 mV, 100 mV, 1V, - Precizie - 0.5% + 1cifra, 0.8% + 2cifre. Voltaj curent alternativ: - Trepte - 200mV, 2V, 20V, 200V, 200mV, 750V, - Rezolutie - 0.1 mV, 1 mV, 10 mV, 100 mV, 0.1 mV, 1V, - Precizie - 0,8% + 3 cifre, 1,2% + 3 cifre. Amperaj CC & AC : - Trepte - 2mA, 20mA, 200mA, 20 A, - Rezolutie - 1 µA, 10 µA, 0.1 mA, 0.01 A, - Precizie - 1% + 1 cifra, 2% + 5 cifre. Rezistenta : - Trepte - 200, 2k, 20k, 200k, 2M Ohm, 20M, 200M Ohm, - Rezolutie - 0.1, 1, 10, 100, 1k Ohm, 10 k, 100 kOhm, - Precizie - 0.8% + 2 cifre, 1.5% + 2 cifre. Capacitate: - Trepte - 2nF, 20nF, 200nf, 2µF, 20µF, 200uF, - Rezolutie - 1pF, 10pF, 100pF, 1nF, 10nF, 100nF, - Precizie - 2.5% + 5 cifre, - Test Dioda - hfe Transistor - Test Volt 2.8V max, - Test Continuu - Less than 30 +/- 10 Ohm. Specificatii: - Temperatura optima de lucru: +0 - +40 grade C, - Greutate: circa 310g (batteria inclusa), - Dimensiuni: 191mm(L) x 89mm(W) x 35mm (H). Gradul de acuratete: - DC Voltage 200mV-1000V (0.5%+1dgt), - AC Voltage 200mV-750V (0.8%+3dgt), - DC Current 2mA-20A (0.5%+1dgt), - AC Current 2mA-20A (1.0%+3dgt), - Resistanta 200-200M (0.8%+1dgt). - Capacitate 2nF-20 grade F (2.5%+3dgt).
